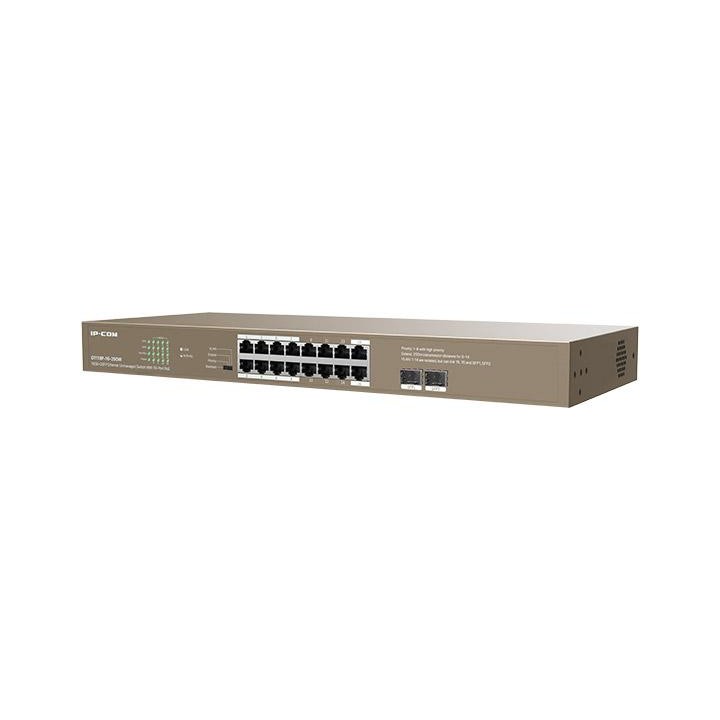

G1118P-16-250W
16GE+2SFP Ethernet Unmanaged Switch With 16-Port PoE
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.
- 16 * 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply,
- 2 * 1000 Mbps Base-X SFP slots.
- 8K MAC address table and MAC address auto-learning.
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.
- 36Gbps backplane bandwidth.
- Maximum power consumption of a single port: 30W; Maximum power consumption of the switch: 250W.
- 4 modes: standard, priority, extend and VLAN.
- Rack mounting.
| Model |
G1118P-16-250W |
| Interfaces |
16 * 100/1000 Mbps Base-T RJ45 ports (Data/Power)
2* 1000 Mbps Base-X SFP port |
| Lightning protection |
≥6KV |
| Forwarding mode |
Store-and-forward |
| Switching capability |
36 Gbps |
| Packet forwarding rate |
26.8 Mpps |
| Buffer |
2M |
| MAC address table |
8K |
| PoE supply |
Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port
230W output of the total PoE Power |
| Power consumption |
250W output the whole device |
| Input voltage |
AC: 100-240V~50/60Hz |
| Dimensions |
440*178.8*44mm |
| Four Modes |
Standard: Default mode of the switch. In this mode, it works as an unmanaged switch;all ports can communicate with each other separately.
Priority: In this mode, port 15,16,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port. All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 9 - 14 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 - 14 of the switch can communicate with port15,16, SFP1, SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. |
| Operating environment |
Operating Temperature: 0℃~45℃ (32℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Certificates |
FCC、CE、RoHS |
